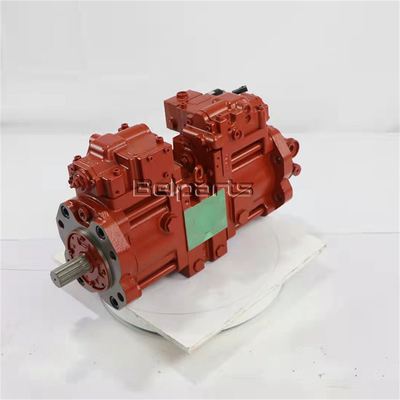

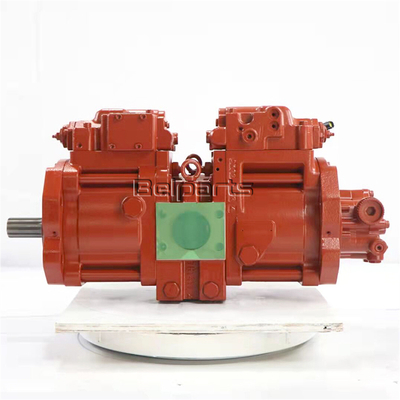

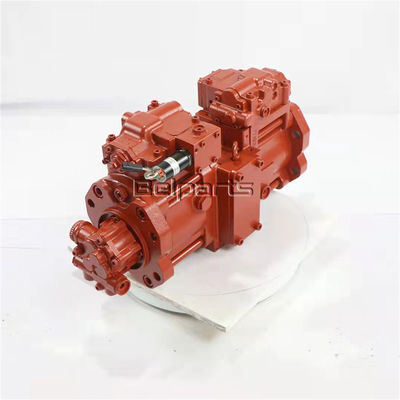

R160LC-3 R160LC-9 Belparts graafmachine hoofdpomp R180LC-9 hydraulische pomp 31Q5-10010 31EG-10010 K3V63DT-1R0R voor hyundai
Een snelle beschrijving van de hydraulische pomp van de graafmachine
Productnaam:Hydraulische pomp voor graafmachines
Merk: Belparts
Machinemodel:R160LC-3 R160LC-9 R180LC-9
Verpakking Grootte: 84*38*49
Deelnummer: 31Q5-10010 31EG-10010 K3V63DT-1R0R
Druk:Standaard, hoge druk
Productnaam | Hydraulische pomp voor graafmachines |
Merken | Belparts |
Machinemodel | R160LC-3 R160LC-9 |
Verpakkingsmaat | 84*38*49 |
Deelnummer | 31Q5-10010 K3V63DT-1R0R |
Druk | Standaard, hoge druk |
# | Deel nr. | Deelnaam | Qty. | Prijsverzoek |
* | 31Q5-10010 | Hoofdpomp | 1 | |
*-1 | @ | Brandstofinjectiepijp en spuitstuk | 1 | |
111 | XJBN-00802 | SHAFT ((F) - DRIVE | 1 | |
113 | XJBN-00803 | SHAFT ((R) - DRIVE | 1 | |
116 | XJBN-00804 | Gear-1ST | 1 | |
123 | XJBN-00429 | Lagersroller | 2 | |
124 | XJBN-00805 | Vervaardiging uit produkten van de categorieën 8521 en 8528 | 2 | |
127 | XJBN-00806 | SPACER-LAGER | 4 | |
S141 | XJBN-00807 | Blok-cilinder | 2 | |
S151 | XJBN-00425 | PISTON | 18 | |
S152 | XJBN-01278 | Schoenen | 18 | |
153 | XJBN-00808 | Plaat-SET | 2 | |
156 | XJBN-00422 | BUSHING-SFERICAL | 2 | |
157 | XJBN-00421 | VERSPRING-CYLINDER | 18 | |
211 | XJBN-00420 | Plaat-schoen | 2 | |
S212 | XJBN-00419 | Plate-Swash | 2 | |
S214 | XJBN-00418 | BUSHING-TILTING | 2 | |
251 | XJBN-00417 | Ondersteuning | 2 | |
261 | XJBN-00809 | COVER-FR | 1 | |
271 | XJBN-01046 | CASING-PUMP | 2 | |
312 | XJBN-00812 | Blokklep | 1 | |
S313 | XJBN-01045 | Plaat ((R) -klep | 1 | |
S314 | XJBN-01044 | Plaat ((L) -klep | 1 | |
S326 | XJBN-00937 | Hoofdstuk | 1 | |
401 | XJBN-00411 | Schroef | 8 | |
406 | XJBN-00813 | Schroef-hex S H C | 8 | |
414 | XJBN-00160 | Schroefdoos | 4 | |
466 | XJBN-00030 | PLOG | 2 | |
467 | XJBN-00487 | PLOG | 4 | |
468 | XJBN-00814 | PLOG | 2 | |
490 | XJBN-00032 | PLOG | 15 | |
S531 | XJBN-00815 | PIN-TILTING | 2 | |
532 | XJBN-00407 | PISTON-SERVO | 2 | |
534 | XJBN-00816 | STOPPER ((L) | 2 | |
535 | XJBN-00405 | STOPPER (s) | 2 | |
S548 | XJBN-00360 | PIN-feed-terug | 2 | |
K702 | XJBN-00817 | O-RING | 2 | |
K710 | XJBN-00387 | O-RING | 1 | |
K711 | XJBN-00095 | O-RING | 1 | |
K717 | XJBN-00818 | O-RING | 2 | |
K719 | XJBN-00819 | O-RING | 2 | |
K724 | XJBN-00044 | O-RING | 18 | |
K725 | XJBN-00045 | O-RING | 2 | |
K727 | XJBN-00233 | O-RING | 2 | |
K728 | XJBN-00097 | O-RING | 4 | |
K732 | XJBN-00820 | O-RING | 2 | |
K774 | XJBN-01029 | Zeepolie | 1 | |
K789 | XJBN-00476 | RING-BACK UP | 2 | |
K792 | XJBN-00454 | RING BACK-UP | 2 | |
808 | XJBN-00101 | NUT-HEX | 4 | |
824 | XJBN-00821 | RING-SNAP | 2 | |
885 | XJBN-00394 | PIN-VALVE-PLAAT | 2 | |
886 | XJBN-00054 | PIN-SPRING | 4 | |
901 | XJBN-00104 | BOLT-EYE | 2 | |
953 | XJBN-00105 | Schroefsets | 2 | |
954 | XJBN-00392 | Schroefsets | 2 | |
981 | XJBN-00156 | Naamplaat | 1 | |
983 | XJBN-00455 | PIN-code | 2 | |
*-2 | @ | Brandstofinjectiepijp en spuitstuk SEE 4020 |
1 | |
*-3 | @ | Brandstofinjectiepijp en spuitstuk SEE 4030 |
1 | |
011 | XJBN-01572 | PISTON SUB ASSY Zie illustratie. |
2 | |
013 | XJBN-01048 | CYLINDER SUB ASSY-RH Zie illustratie. |
1 | |
014 | XJBN-01047 | CYLINDER SUB ASSY-LH Zie illustratie. |
1 | |
030 | XJBN-00800 | SWASH PLATE SUB ASSY Zie illustratie. |
2 | |
530 | XJBN-00801 | Tilting pin sub assy Zie illustratie. |
2 |
