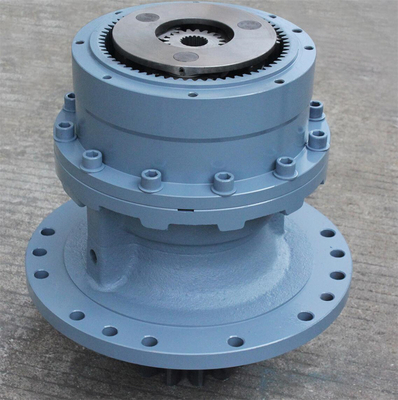

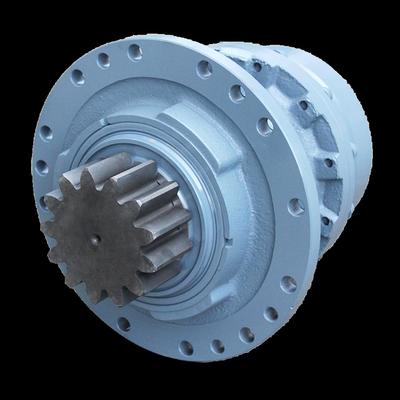

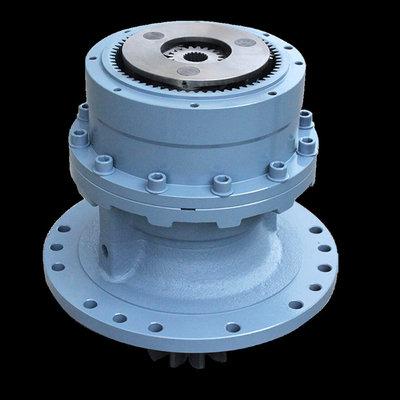

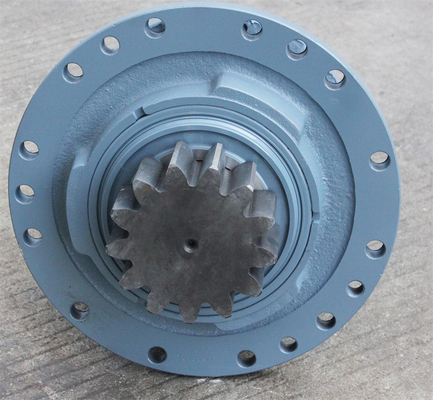

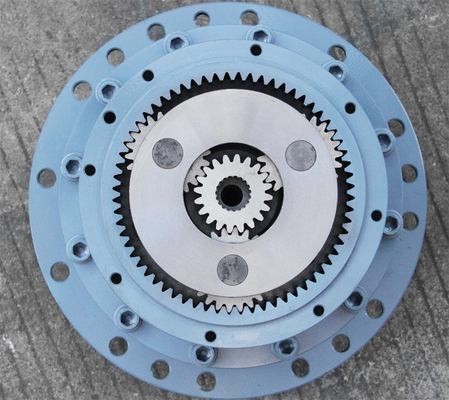

Graafwerktuig zx200-3 zx200-5 zx170w-3 zx210w-3 9260804/9262916 schommelingsversnellingsbak
Productiebeschrijving
Detailbeeld
| Pos. | Artikelnummer | Qty | Delennaam | Commentaren |
|---|---|---|---|---|
| 01. | 9276405 | [1] | SCHOMMELINGSapparaat | I 9262916 (voor assemblage van machine) |
| 01. | 9262916 | [1] | SCHOMMELINGSapparaat | (voor vervoer) |
| Pos. | Artikelnummer | Qty | Delennaam | Commentaren |
|---|---|---|---|---|
| 01. | 9276406 | [1] | SCHOMMELINGSapparaat | I 9262916 (voor assemblage van machine) |
| 01. | 9262916 | [1] | SCHOMMELINGSapparaat | (voor vervoer) |
| Pos. | Artikelnummer | Qty | Delennaam | Commentaren |
|---|---|---|---|---|
| 9260805 | [1] | SCHOMMELINGSapparaat | ||
| 00. | 4610138 | [1] | MOTOR; OLIE (SCHOMMELING) | |
| 01. | 991342 | [1] | RING; Het BEHOUDEN | |
| 02. | 9260804 | [1] | T.MISSION (SCHOMMELING) | I 9262916 <for assemblage van machine> |
| 02. | 9262916 | [1] | T.MISSION (SCHOMMELING) | <for transportation> |
| 03. | 4614096 | [8] | BOUT; CONTACTDOOS | |
| 04. | 4449144 | [1] | PIJP | |
| 05. | 3107447 | [1] | MAAT; NIVEAU | |
| 06. | 4332658 | [1] | PIJP | |
| 07. | 4343365 | [1] | GLB | |
| 09. | +++++++ | [1] | NAAMBORD | |
| 10. | M492564 | [2] | SCHROEF; DRIVE |
