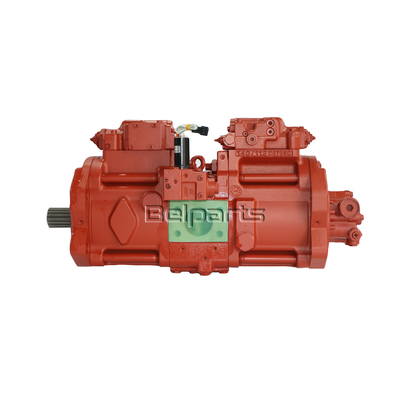

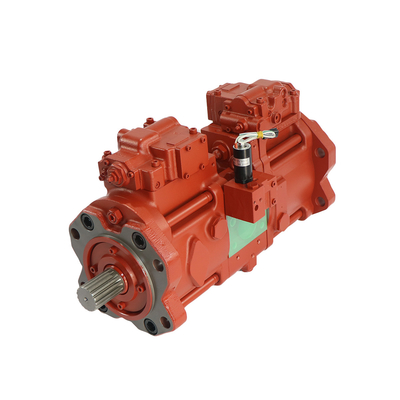

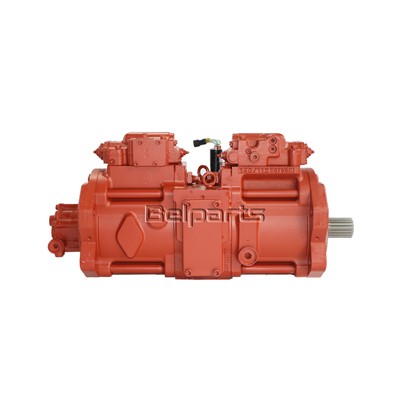

Belondelen R305 R335 R350-7-9 Hydraulische pomp van de graafmachine 31N8-10011 31N8-10070 Hydraulische hoofdpomp
Toepassing: graafmachine
Deelnaam:hydarulicpomp
Deelnummer:31N8-10011 31N8-10070
Model:R305 R335 R350-7-9
MOQ: 1pc
Materiaal: staal
Betalingstermijn:T/T, Western Union, paypal, handelsgarantie of indien vereist
Gewicht:190 kg
Merk: Belparts
Toepassing | De volgende egorieën zijn bedoeld: |
Deelnaam | hydarulicumpomp |
Deelnummer | 31N8-10011 31N8-10070 |
Model | R305 R335 R350-7-9 |
MOQ | 1 pc |
Materiaal | Staal |
Betalingsduur | T/T, Western Union, paypal, handelsgarantie of naar behoefte |
Gewicht | 190 kg |
Brandnaam | Belparts |
# | Deel nr. | Deelnaam | Qty. | Prijsverzoek |
* | 31N8-10011 | Hoofdpomp | 1 | |
*-1 | XJBN-00996 | Hoofdpomp-eenheid | 1 | |
111 | XJBN-00015 | SHAFT-DRIVE ((F) | 1 | |
113 | Voor de toepassing van deze verordening geldt: | SHAFT-DRIVE ((R)) | 1 | |
114 | XJBN-00367 | Koppelingslijn | 1 | |
123 | XJBN-00017 | Lagersroller | 2 | |
124 | XJBN-00018 | Vervaardiging uit produkten van de egorieën 8521 en 8528 | 2 | |
127 | XJBN-00019 | SPACER-LAGER | 3 | |
NS141 | XJBN-00007 | Blok-cilinder | 2 | |
NS151 | XJBN-00004 | PISTON | 18 | |
NS152 | XJBN-00748 | Schoenen | 18 | |
153 | XJBN-00020 | Plaat-SET | 2 | |
156 | XJBN-00021 | BUSHING-SFERICAL | 2 | |
157 | XJBN-00022 | VERSPRING-CYLINDER | 18 | |
211 | XJBN-00023 | Plaat-schoen | 2 | |
NS212 | XJBN-00012 | Plate-Swash | 2 | |
NS214 | XJBN-00013 | BUSHING-TILTING | 2 | |
251 | XJBN-00024 | Ondersteuning | 2 | |
261 | XJBN-00025 | COVER ((FR) - SEAL | 1 | |
271 | XJBN-00026 | CASING-PUMP | 2 | |
312 | XJBN-00027 | Blokklep | 1 | |
NS313 | XJBN-00008 | Plaat ((R) -klep | 1 | |
NS314 | XJBN-00010 | Plaat ((L) -klep | 1 | |
N325 | XJBN-00380 | Gelast-klep | 1 | |
401 | XJBN-00028 | Schroef | 8 | |
406 | XJBN-00355 | Schroef-hex SOC HD | 4 | |
407 | XJBN-00381 | Schroef | 3 | |
466 | XJBN-00356 | PLOG | 3 | |
468 | XJBN-00357 | PLOG | 4 | |
490 | XJBN-00032 | PLOG | 32 | |
NS531 | XJBN-00369 | PIN-TILTING | 2 | |
532 | XJBN-00033 | PISTON-SERVO | 2 | |
534 | XJBN-00034 | STOPPER ((L) | 2 | |
535 | XJBN-00035 | STOPPER (s) | 2 | |
N541 | XJBN-00036 | SEAT | 4 | |
N543 | XJBN-00037 | STOPPER 1 | 2 | |
N544 | XJBN-00039 | Stopper 2 | 2 | |
N545 | XJBN-00359 | BALL-STAIL | 4 | |
NS548 | XJBN-00360 | PIN-feed-terug | 2 | |
702 | XJBN-00040 | O-RING | 2 | |
710 | XJBN-00041 | O-RING | 1 | |
717 | XJBN-00042 | O-RING | 2 | |
719 | XJBN-00043 | O-RING | 2 | |
724 | XJBN-00361 | O-RING | 16 | |
725 | XJBN-00362 | O-RING | 8 | |
727 | XJBN-00283 | O-RING | 1 | |
728 | XJBN-00363 | O-RING | 3 | |
732 | XJBN-00047 | O-RING | 2 | |
774 | XJBN-00048 | Zeepolie | 1 | |
789 | XJBN-00049 | RING-BACK UP | 2 | |
792 | XJBN-00050 | RING-BACK UP | 2 | |
808 | XJBN-00364 | NUT | 4 | |
824 | XJBN-00052 | RING-SNAP | 2 | |
885 | XJBN-00053 | PIN-2 | 2 | |
886 | XJBN-00365 | PIN-SPRING | 4 | |
901 | XJBN-00055 | BOLT-EYE | 2 | |
953 | XJBN-00056 | Schroefsets | 2 | |
954 | XJBN-00057 | Schroefsets | 2 | |
981 | XJBN-00156 | Naamplaat | 1 | |
983 | XJBN-00341 | PIN-code | 2 | |
*-2 | XJBN-00001 | Regulerend | 1 | |
*-3 | XJBN-00002 | GER PUMP | 1 | |
*-4 | XJBN-00014 | CASING ASSY-EPPR VLV | 1 | |
011 | XJBN-00003 | PISTON SUB ASSY Zie illustratie. |
2 | |
013 | XJBN-00006 | Cylinder ASSY-RH Zie illustratie. |
1 | |
014 | XJBN-00009 | Cylinder ASSY-LH Zie illustratie. |
1 | |
030 | XJBN-00011 | SWASH PLATE ASSY Zie illustratie. |
2 | |
053 | XJBN-00371 | TILTING PIN ASSY Zie illustratie. |
2 | |
N | @ | Brandstofinjectiepijp en spuitstuk | 1 |
